Overview

Basic Info.

Model NO.	Ground Rod
Mathematical Model	Linear
Signal	Continuous
Function	Automatic Control, Protection, Monitoring, Measurement
Certification	RoHS, CCC, ISO: 9001, CE, UL
Condition	Used
Customized	Customized
Material	Stainless Steel

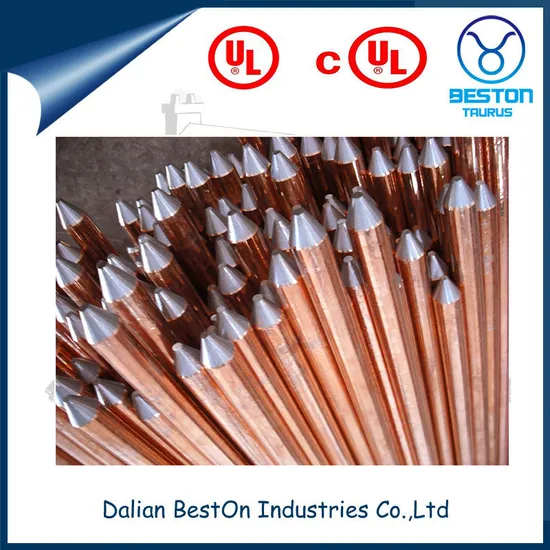

Product Name	Copper Bonded Steel Ground Rod
Ground Rod Material	Copper Bonded Steel
Standard	UL 467
Copper Layer Thickness	>=0.254mm
Tensile Strength	>=580nm/mm
Length	1.2m~3.0m(4FT~10FT)
Copper Grade	99.9%
Normal Diameter	3/8".1/2". 5/8". 3/4". 1"
Process	Electroplating
Application	Grounding System
Copper Thickness	50micro to 254micron
Custom Length	1200mm,1500mm,1800mm,2100mm,2400mm,3000mm
Other Standard	BS En 50164-2,BS 7430
Purity	99.9% Electronic Copper and Low Carbon Steel
Surface Treatment	Hot DIP Galvanized
Transport Package	Bundle/Pallet
Specification	3/8". 1/2". 5/8". 3/4". 1"
Trademark	Dalian BestOn
Origin	Dalian, China
HS Code	73269090
Production Capacity	100000 Piece/Pieces Per Month

Product Description

The product copper bonded steel earth rod can be widely used in the communications industry, power systems, building systems, installations, railway systems, broadcasting systems, and other equipment industries, the AC and DC work, safely protected, especially suitable for the harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.Copper Bonded Steel Earth Ground Rod- copper coated earth rods offer installers the most economical method of achieving low earth resistance. - Each rod is made of 99.9% pure electrolytic copper onto a low carbon steel core. The threads are formed by a cold rolling process which ensures strength and maintains the molecularly bonded copper covering along the full length of the threads. High tensile strength and conductivity. The standard copper thickness is 254 micron(others also can make it as the customer requested) - Earth rods to BS EN 50164-2, Bs7430 and UL467; Fittings to BS EN 50164-1

Products Advantage 1. Selected raw materials, using 99.9% pure electrolytic copper and low carbon steel core 2. Copper plating thickness average 3. Strong conductivity 4. Printed according to customer requirementsPRODUCT TECHNICAL SPECIFICATION A. Thickness of the copper layer is more than 0.254mm(all can be done to your demand) B. The core steel rod shall have a tensile strength of not less than 580Nm/mm2. C. The steel core is low carbon steel, and the carbon content is about 0.15%. D. The purity of the copper used as cladding shall be 99.9% pure copper. E. The copper bonded steel earth rod will be capable of being through 90 at a maximum radius of 100mm with no copper fracture and with no ill effect on the bond between the steel and the copper cladding. F. Good in anticorrosion that usage-life is more than 50 years or more, constant low resistance and good plasticity which had the characteristics of copper as well as steel.

Q: Are you a factory or a trading company? A: We are a factory located in Dalian, Liaoning Province, China. Q: What's the payment term? A: We accept T/T 30% deposit and 70% before shipment, also Western Union, L/C At Sight is ok! Q: How to solve the problem of product error, leakage, and size? A: We provide quality and quantity guarantees, and after-sales service can provide solutions quickly and online to ensure the interests and interests of customers. Q: Do you accept joint research and development of new products? A: Of course, we can jointly develop new products based on samples or drawings provided by our customers. The details can be discussed in detail. Q: Is Regional product agents available? A: We are happy to accept agency agreements, offer more favorable prices and achieve long-term friendly relationships.

Dalian BestOn Industries Co., Ltd.

Factory Add: Rm 503, Unit 2, Building 34, Lv Zhou Ban Dao Bei An, Economic and Technological Development Zone, Dalian, Liaoning, China
Product Description

Brand Name:	Dalian BestOn
Material:	99.9% Electronic Copper and Low Carbon Steel
Normal Diameter:	3/8".1/2". 5/8". 3/4". 1".
Length:	1200mm,1500mm,1800mm,2100mm,2400mm,3000mm
Diameter & Length:	More size can according to customer's requirement
Copper Thickness:	50Micro to 254Micron
Type:	Threaded
Certificate:	CE, ISO9001,RoSH,TUV
Tensile Strength:	500-700N/mm2
Straightness error:	≤1mm/m
Standard:	BS EN 50164-2,BS 7430
Application:	Earthing And Lightning Protection System
Process:	Electroplating
Available service:	OEM, ODM
Service life:	≥30years

Product Parameters

PRODUCT SPECIFICATION

We can supply you with three shapes: 1) Copper bonded steel earth rod can be made double heads thread, the thread can be packed by plastic sheath 2) One end is pointed and the other end is threaded to extend 3) One end is pointed and the other end is flat.

*Special size and copper thickness can be supplied on request. PRODUCT FEATURES

Dalian BestOn China Professional Ground Rod Manufacturer Electrical Ground Rod Sample Available Tungsten Carbide Ground Rod 9/16 Screw Type Ground Rod

Model	Dia. (mm)	Threaded(in)	Copper layer thickness(mm)	Length of supply(mm)
BestOn-DD38	9	3/8	0.254	1200	1500	1800	2400	3000	6000
BestOn-DD12	12.5	11/2	0.254	1200	1500	1800	2400	3000	6000
BestOn-DD58	14.2	5/8	0.254	1200	1500	1800	2400	3000	6000
BestOn-DD34	17.2	3/4	0.254	1200	1500	1800	2400	3000	6000
BestOn-DD1	23	1	0.254	1200	1500	1800	2400	3000	6000

1. The manufacturing process:	Copper bonded steel earth rod is cast through an electrolytic process, with 99.9% copper molecules evenly covering the steel core. It is a very uniform copper layer and has a thickness of 0.254mm or more. Products have conductive properties of copper and the tensile strength of steel. Since the copper layer and the steel material is a binding molecule, the copper layer is not easily peeled off, and will not crack when bent in operation.
2. Good conductivity:	Since the Copper bonded steel earth rod of the outer copper layer of 99.9% purity electrolytic copper, has a thickness of 0.254mm or more, the conductivity has been tested at more than 40%, when the transmission frequency is greater than 1.67MHz, which is fully equivalent to the conductive properties of solid copper.
3. Strong corrosion resistance:	The surface of the ground rod is 99.9%, pure electrolytic copper. Combined with its copper and steel are molecules that overcome their electrochemical corrosion, buried in the soil and thus have a strong resistance to corrosion, the service life of over 30 years.
4. Tensile strength:	Copper bonded steel earth rod has a conductivity of copper, and steel's large tensile strength (up to 580N/mm2) characteristics. In construction operations, ground rods can be easily driven into a depth of up to 20m or more under the ground. That will reduce a lot of trouble during construction and installation costs.
